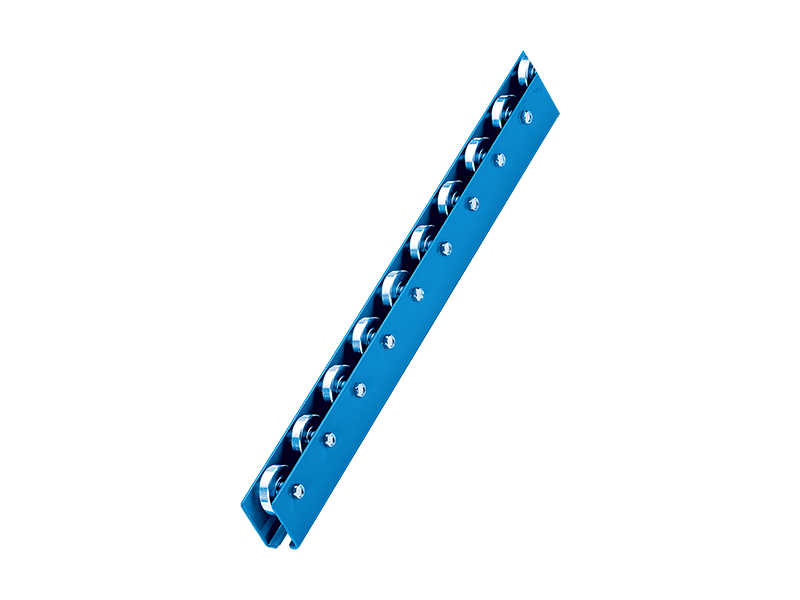

W-36BS
Cat:Snijden wieltransporteur
Type D*w*d*b Schacht Framegrootte h*w1*w2*w3*t ...
Geavanceerde structuur, hoogwaardige prestaties, gemakkelijk te gebruiken, hoge betrouwbaarheid en duurzaamheid.
De metalen vloeiende wieltransporteur is een vloeiende wielsamenstelling van metalen materiaal van vloeiende staaf, de wielen zijn over het algemeen gemaakt van stempelen en het snijden van twee verwerkingsmethoden, het materiaal is staal gegalvaniseerd, roestvrij staal, chroomplaten en andere opties. Framemateriaal is in het algemeen verdeeld in: staal gegalvaniseerd, stalen spray, aluminium, roestvrij staal.

Type D*w*d*b Schacht Framegrootte h*w1*w2*w3*t ...
| Type | D*w*d*b | Schacht | Framegrootte h*w1*w2*w3*t | Hoogte H | Lengte L | Wielhoed P | Laden met één wiel (kg) | Frametype |

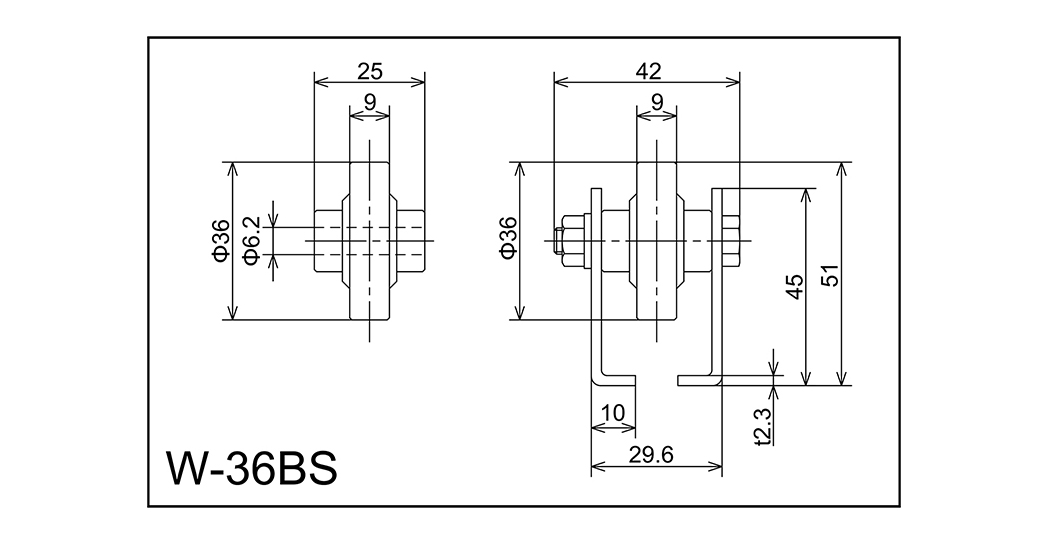

| W-36BS | 36x9x6.2x25 | M6X38L | 45x29.6x10x42x2.3 | 51 | 1000 · 2000 · 3000 | 50 · 75 · 100 · 150 | 40 | A |

Type D*w*d*b Schacht Framegrootte h*w1*w2*w3*t ...
| Type | D*w*d*b | Schacht | Framegrootte h*w1*w2*w3*t | Hoogte H | Lengte L | Wielhoed P | Laden met één wiel (kg) | Frametype |

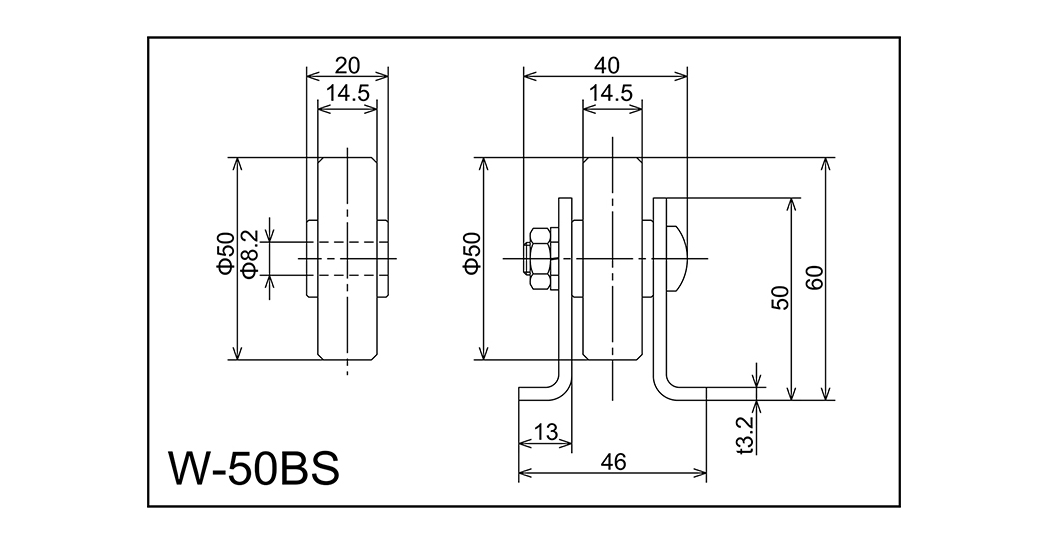

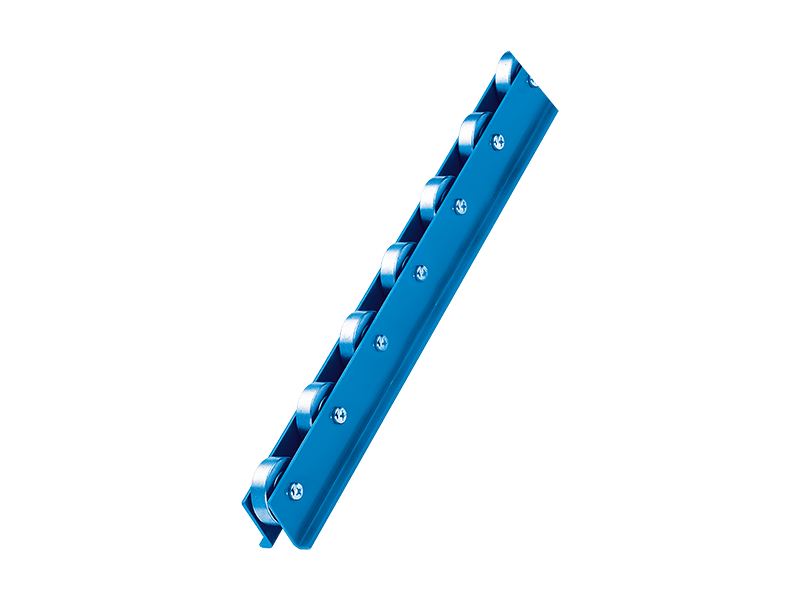

| W-50BS | 50x14.5x8.2x20 | M8X35L | 50x46x13x40x3.2 | 60 | 1000 · 2000 · 3000 | 75 · 100 · 150 | 80 | C |

Type D*w*d*b Schacht Framegrootte h*w1*w2*w3*t ...
| Type | D*w*d*b | Schacht | Framegrootte h*w1*w2*w3*t | Hoogte H | Lengte L | Wielhoed P | Laden met één wiel (kg) | Frametype |

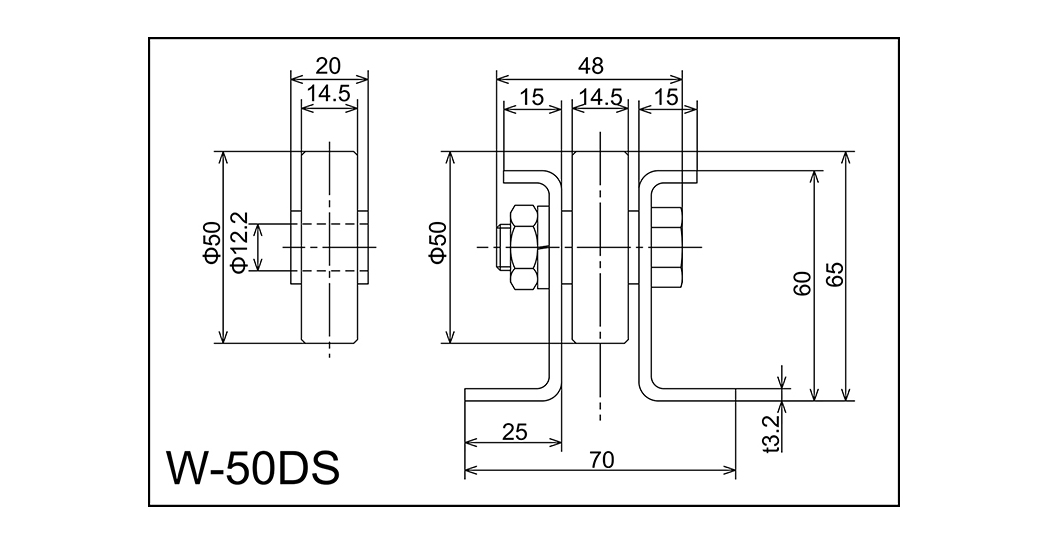

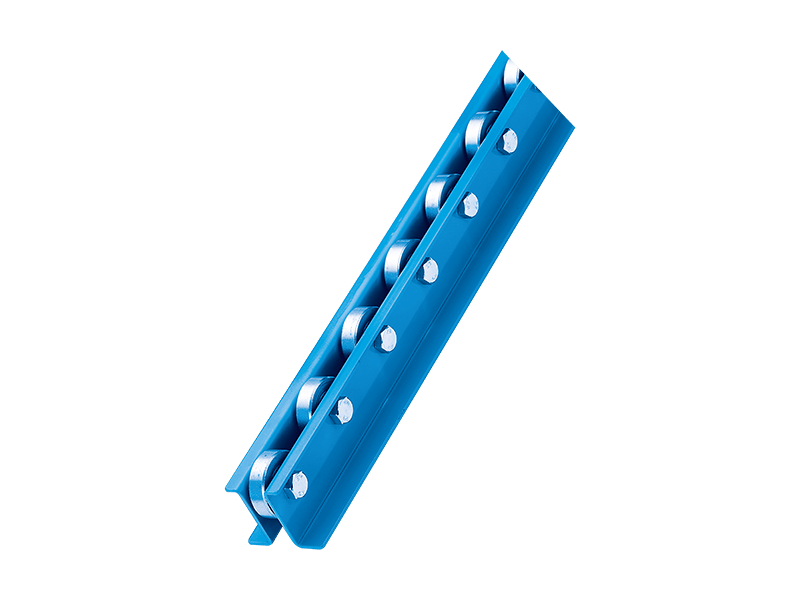

| W-50DS | 50x14.5x12.2x20 | M12X40L | 60x70x25x48x3.2 | 65 | 1000 · 2000 · 3000 | 75 · 100 · 150 · 200 | 100 | D |
| WB-36BS | 36x9x6.2x25 | M6X35L | 45x28.2x8.5x39x1.6 | 52 | 1000 · 2000 · 3000 | 50 · 75 · 100 | 40 | E |
| WB-36CS | 36x9x8.2x28 | M8X40L | 42.3x60x31.2x45x2.3 | 49.3 | 1000 · 2000 · 3000 | 50 · 75 · 100 | 40 | L |
| W-36CS | 36x9x8.2x28 | M8X40L | 42.3x60x32.6x45x2.3 | 47.3 | 1000 · 2000 · 3000 | 50 · 75 · 100 · 150 | 40 | J |
| W-36BW | 36x9x8.2x14 | M8X55L | 46.3 × 60 × 33 × 71 × 2: 3 | 52.3 | 1000 · 2000 · 3000 | 50 · 75 · 100 · 150 | 40 | K |
| W-36WW | 36x9x8.2x14 | M8x45L | 40x108x40x50.5x3 | 45 | 1000 · 2000 · 3000 | 30 · 40 · 50 · 75 | 40 | M |
| W-50ww | 50x14.5x12.2x20 | M12X65L | 50x140x50x73x6 | 60 | 1000 · 2000 · 3000 | 40 · 50 · 75 | 100 | M |
| HG-W50DS | 50x14.5x12.2x20 | M12X40L | 60x70x25x48x3.2 | 65 | 1000 · 2000 · 3000 | 75 · 100 · 150 · 200 | 100 | D |
| HW-76DS | 76.3x30x30x44 | φ30x75l | 100x145x50x75x5 | 105 | 1000 · 2000 · 3000 | 100 · 200 · 300 | 1000 | O |

Type D*w*d*b Schacht Framegrootte h*w1*w2*w3*t ...
| Type | D*w*d*b | Schacht | Framegrootte h*w1*w2*w3*t | Hoogte H | Lengte L | Wielhoed P | Laden met één wiel (kg) | Frametype |

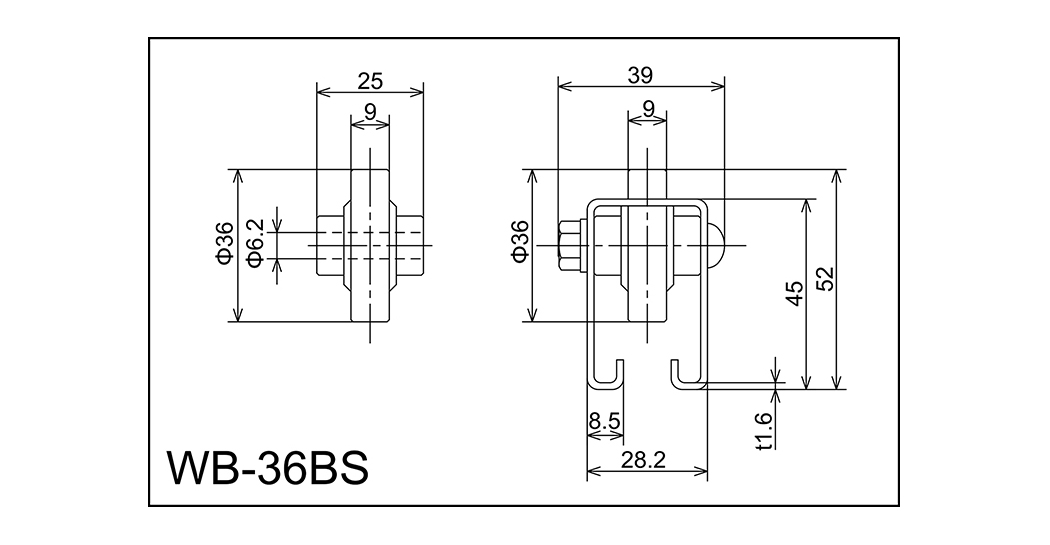

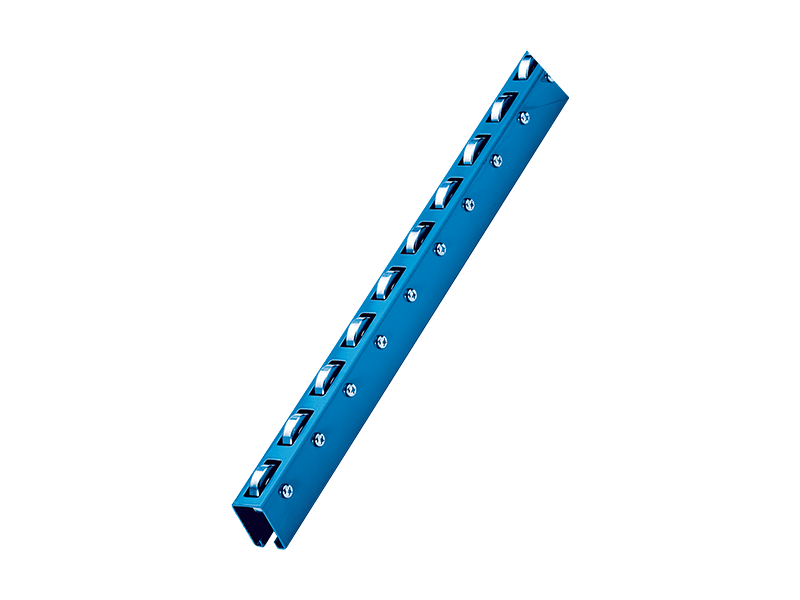

| WB-36BS | 36x9x6.2x25 | M6X35L | 45x28.2x8.5x39x1.6 | 52 | 1000 · 2000 · 3000 | 50 · 75 · 100 | 40 | E |

Type D*w*d*b Schacht Framegrootte h*w1*w2*w3*t ...
| Type | D*w*d*b | Schacht | Framegrootte h*w1*w2*w3*t | Hoogte H | Lengte L | Wielhoed P | Laden met één wiel (kg) | Frametype |

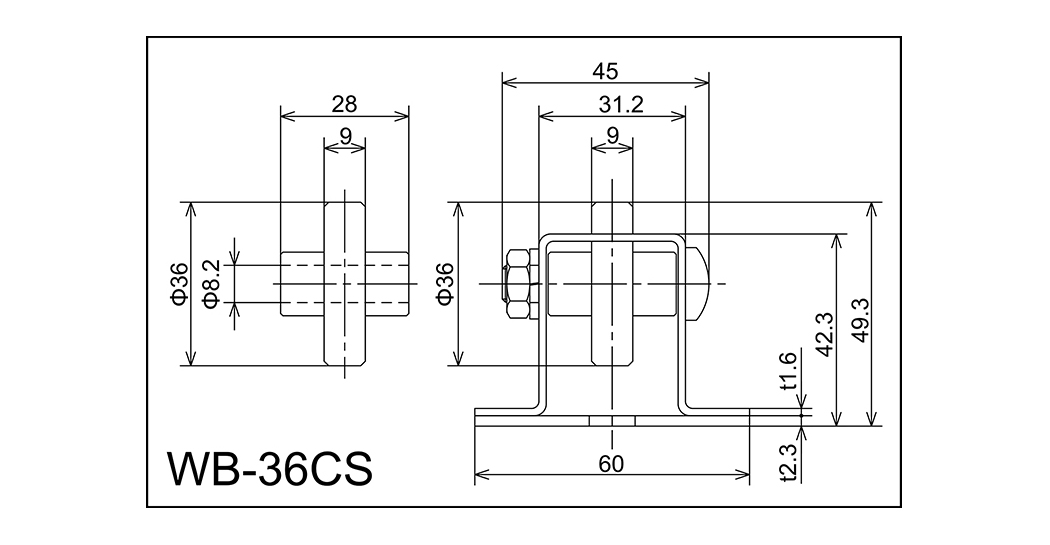

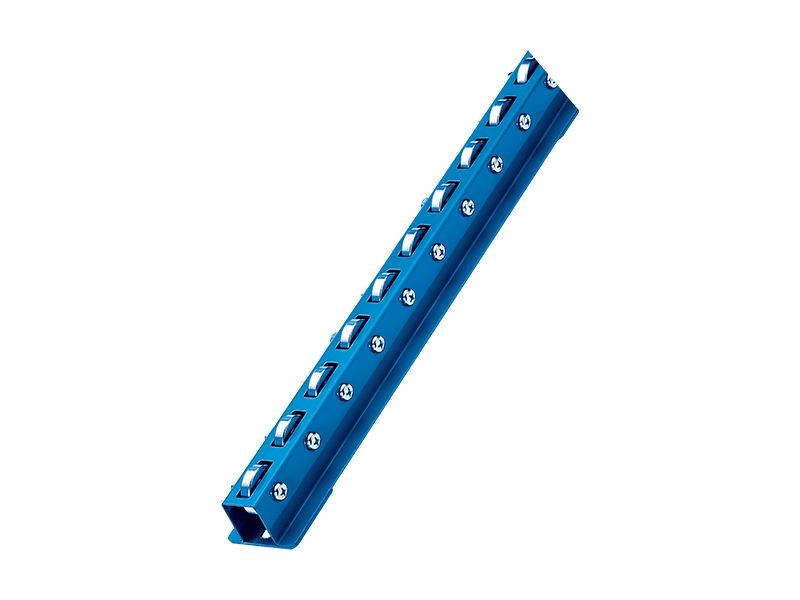

| WB-36CS | 36x9x8.2x28 | M8X40L | 42.3x60x31.2x45x2.3 | 49.3 | 1000 · 2000 · 3000 | 50 · 75 · 100 | 40 | L |

Type D*w*d*b Schacht Framegrootte h*w1*w2*w3*t ...
| Type | D*w*d*b | Schacht | Framegrootte h*w1*w2*w3*t | Hoogte H | Lengte L | Wielhoed P | Laden met één wiel (kg) | Frametype |

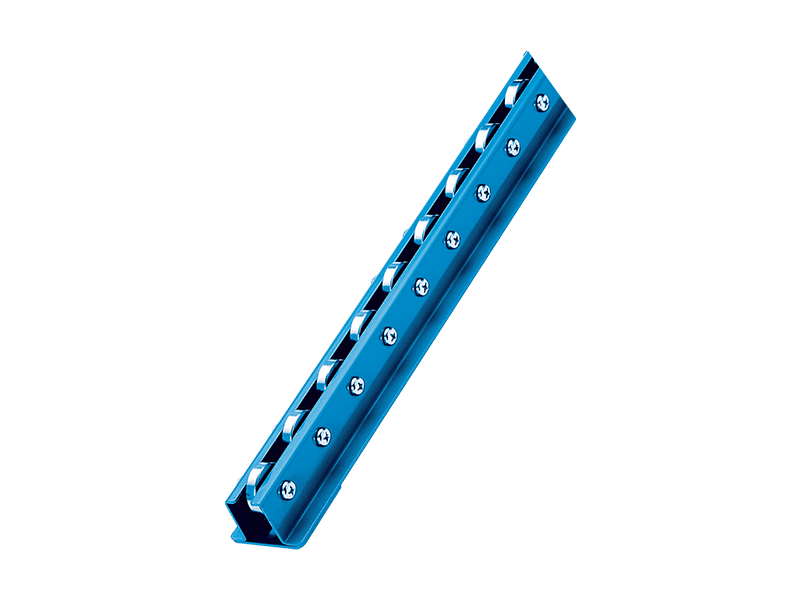

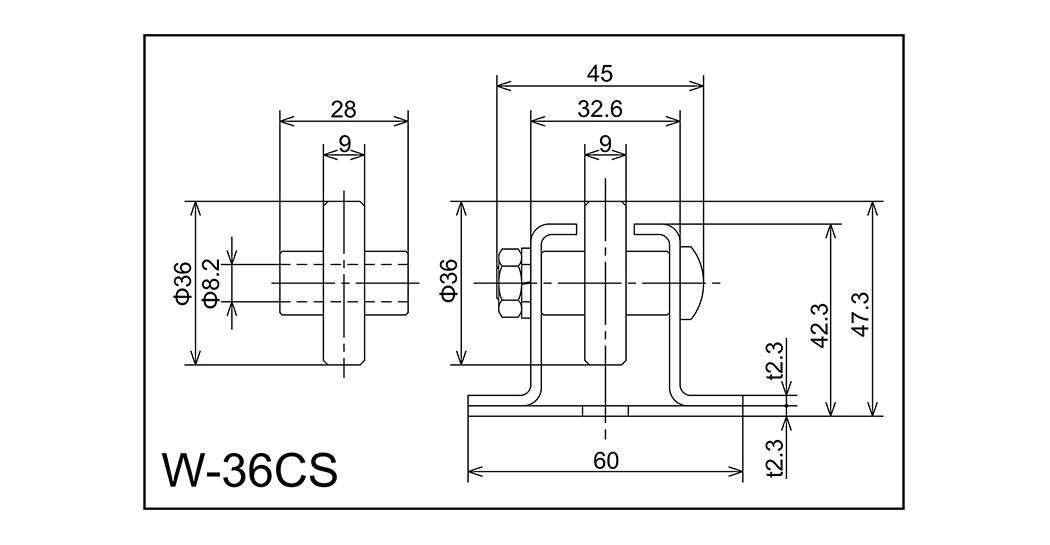

| W-36CS | 36x9x8.2x28 | M8X40L | 42.3x60x32.6x45x2.3 | 47.3 | 1000 · 2000 · 3000 | 50 · 75 · 100 · 150 | 40 | J |

Type D*w*d*b Schacht Framegrootte h*w1*w2*w3*t ...
| Type | D*w*d*b | Schacht | Framegrootte h*w1*w2*w3*t | Hoogte H | Lengte L | Wielhoed P | Laden met één wiel (kg) | Frametype |

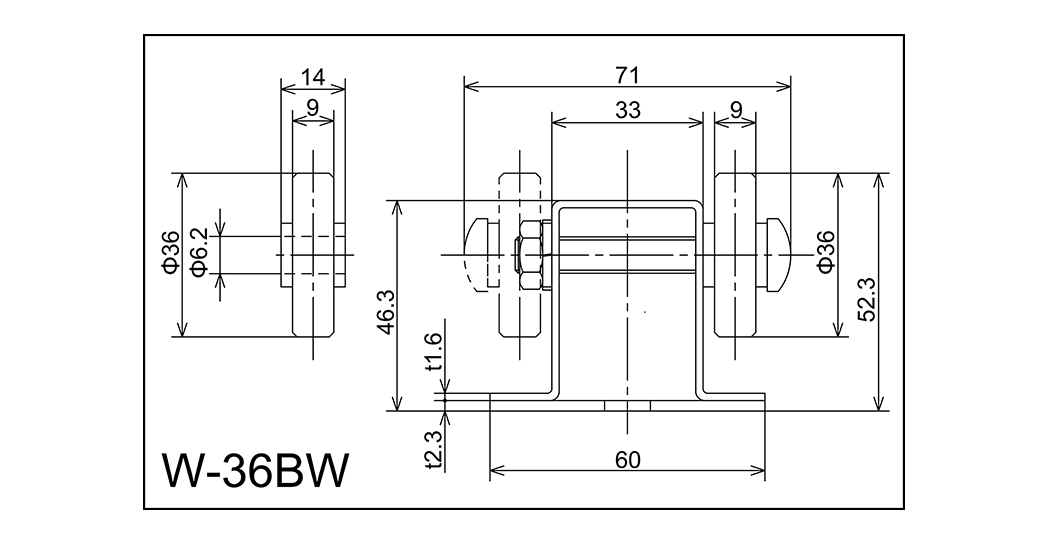

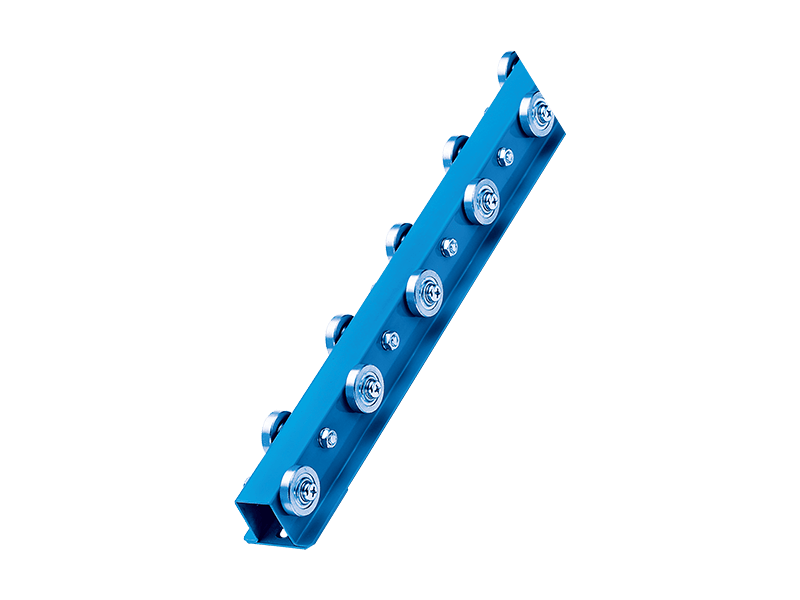

| W-36BW | 36x9x8.2x14 | M8X55L | 46.3 × 60 × 33 × 71 × 2: 3 | 52.3 | 1000 · 2000 · 3000 | 50 · 75 · 100 · 150 | 40 | K |

Type D*w*d*b Schacht Framegrootte h*w1*w2*w3*t ...
| Type | D*w*d*b | Schacht | Framegrootte h*w1*w2*w3*t | Hoogte H | Lengte L | Wielhoed P | Laden met één wiel (kg) | Frametype |

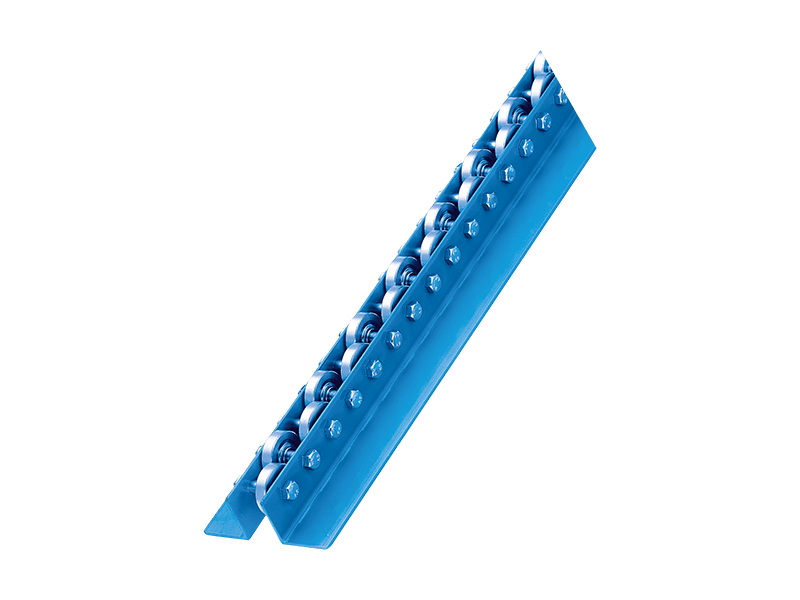

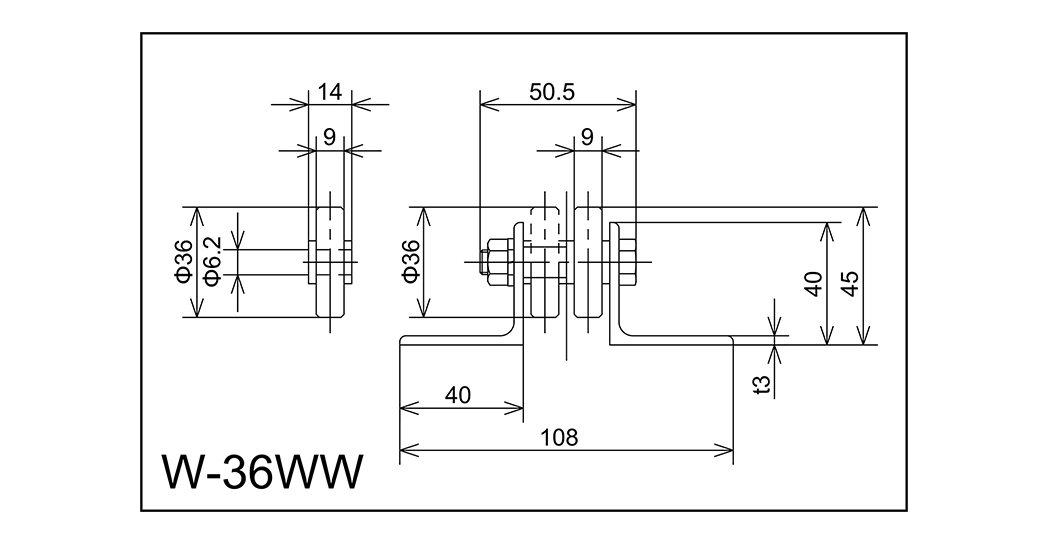

| W-36WW | 36x9x8.2x14 | M8x45L | 40x108x40x50.5x3 | 45 | 1000 · 2000 · 3000 | 30 · 40 · 50 · 75 | 40 | M |

Type D*w*d*b Schacht Framegrootte h*w1*w2*w3*t ...
| Type | D*w*d*b | Schacht | Framegrootte h*w1*w2*w3*t | Hoogte H | Lengte L | Wielhoed P | Laden met één wiel (kg) | Frametype |

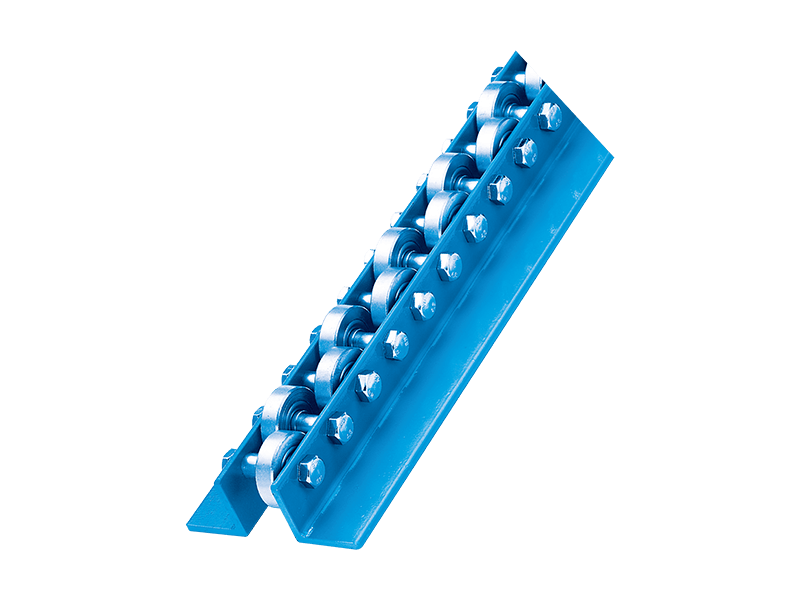

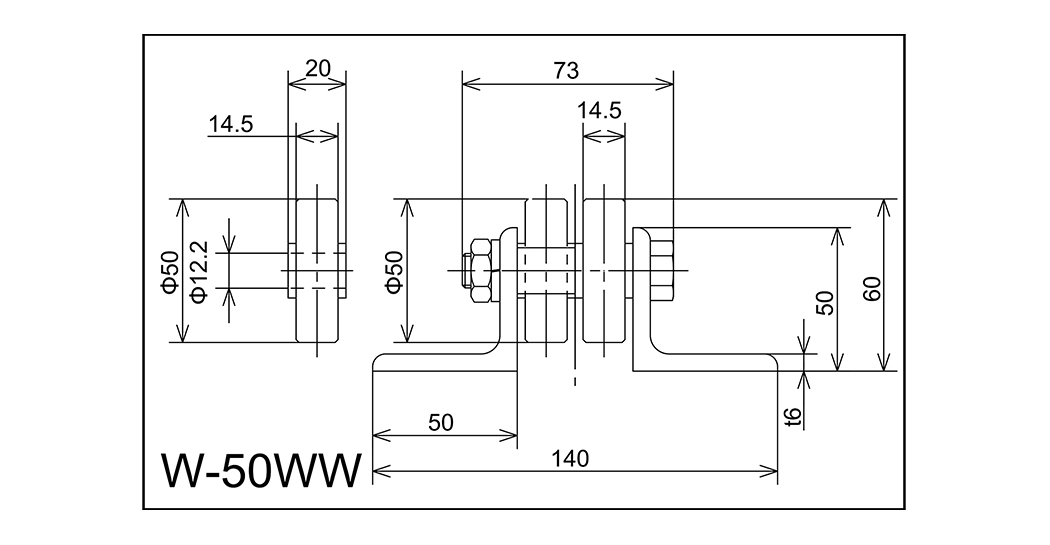

| W-50ww | 50x14.5x12.2x20 | M12X65L | 50x140x50x73x6 | 60 | 1000 · 2000 · 3000 | 40 · 50 · 75 | 100 | M |

Type D*w*d*b Schacht Framegrootte h*w1*w2*w3*t ...
| Type | D*w*d*b | Schacht | Framegrootte h*w1*w2*w3*t | Hoogte H | Lengte L | Wielhoed P | Laden met één wiel (kg) | Frametype |

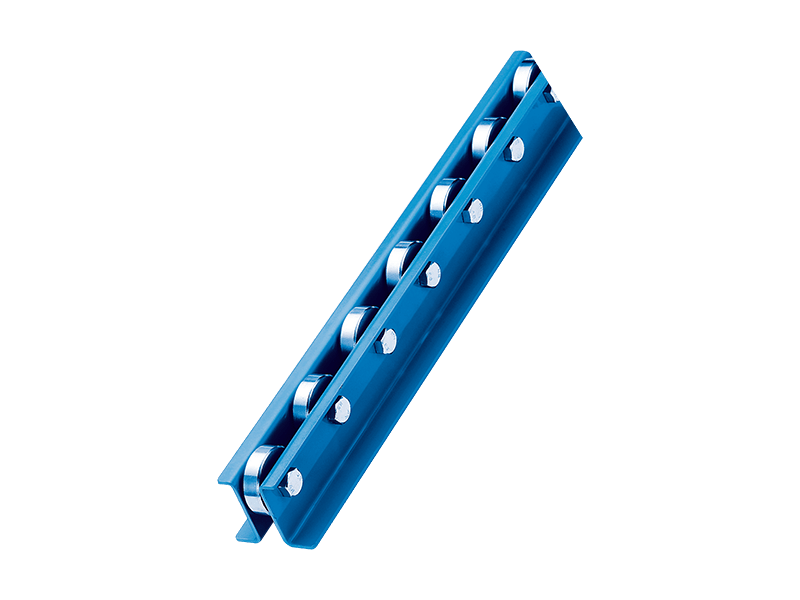

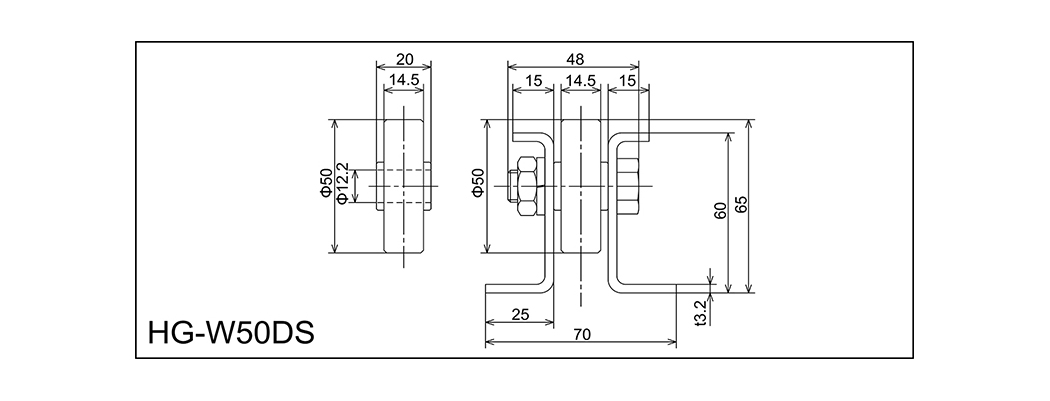

| HG-W50DS | 50x14.5x12.2x20 | M12X40L | 60x70x25x48x3.2 | 65 | 1000 · 2000 · 3000 | 75 · 100 · 150 · 200 | 100 | D |

Type D*w*d*b Schacht Framegrootte h*w1*w2*w3*t ...
| Type | D*w*d*b | Schacht | Framegrootte h*w1*w2*w3*t | Hoogte H | Lengte L | Wielhoed P | Laden met één wiel (kg) | Frametype |

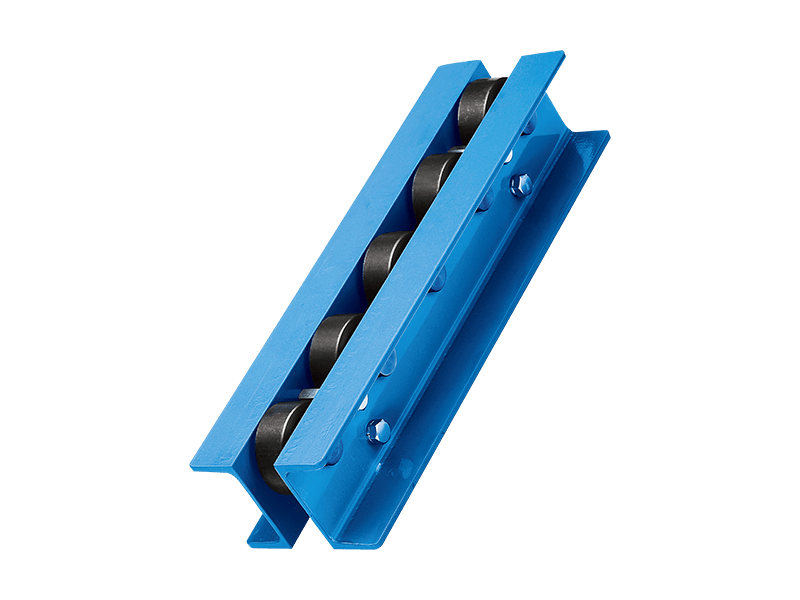

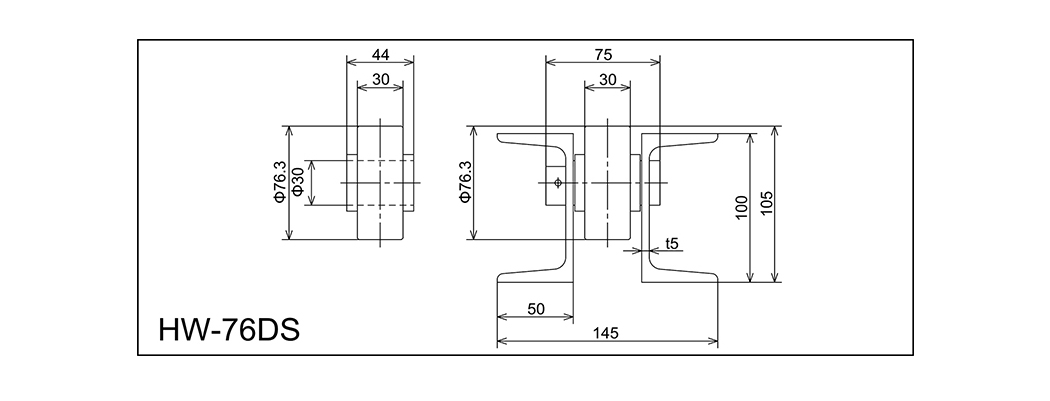

| HW-76DS | 76.3x30x30x44 | φ30x75l | 100x145x50x75x5 | 105 | 1000 · 2000 · 3000 | 100 · 200 · 300 | 1000 | O |

Type D*w*d*b Schacht Framegrootte h*w1*w2*w3*t ...
| Type | D*w*d*b | Schacht | Framegrootte h*w1*w2*w3*t | Hoogte H | Lengte L | Wielhoed P | Laden met één wiel (kg) | Frametype |

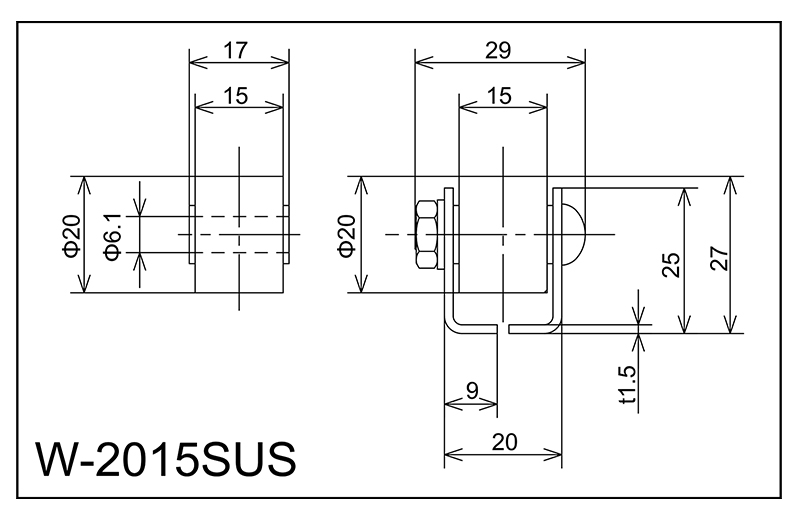

| W-2015SUS | 20x15x6.1x17 | M6X25L | 25x20 × 9x29x1.5 | 27 | 1000 · 1500 · 2000 | 25 · 30 · 35 | 30 | A |
